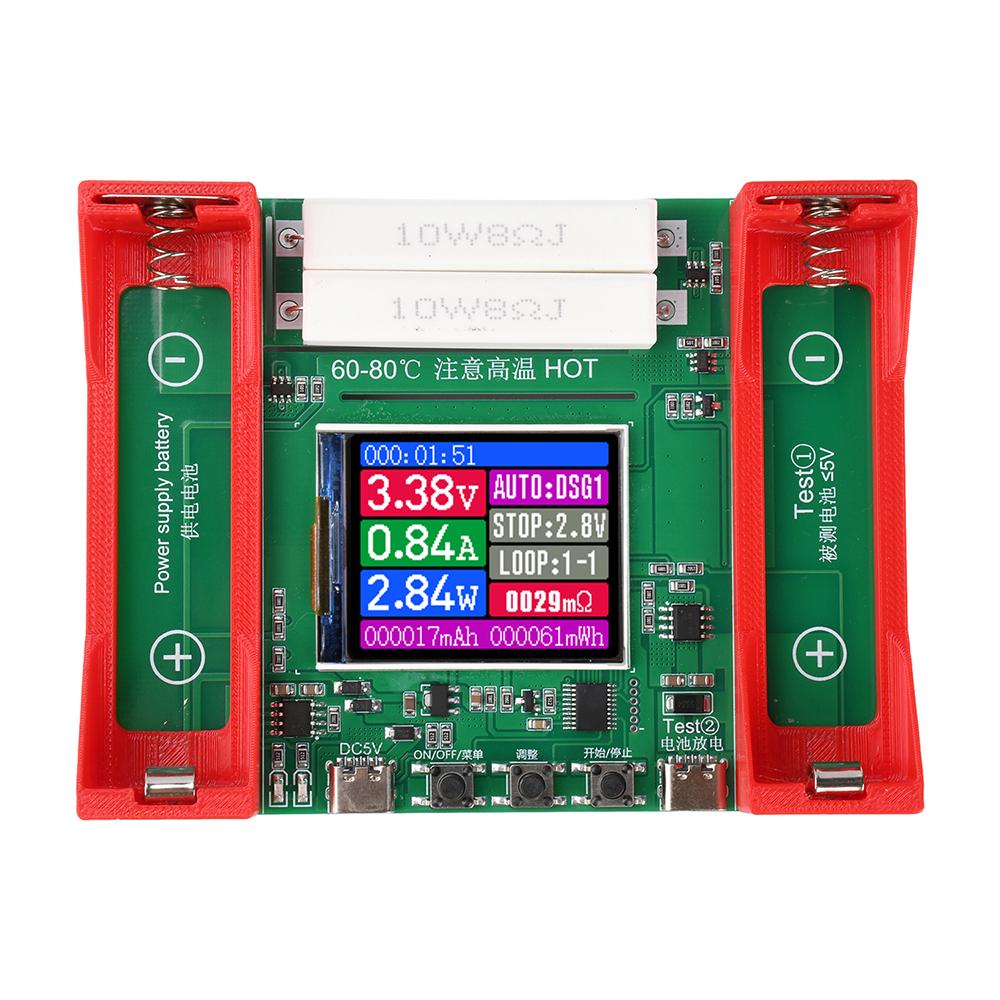

Chinese/english Digital Display Battery Capacity Internal Resistance Tester Module one Channel 18650 Battery Power Detector

Quantity : 1 High-concerned chemical : none Package : SMD is_d : Yes Dissipation Power : one Channel Internal Resistance Tester Supply Voltage : 2.5-3.5V,4.2V Type : Module Brand Name : Gaqqee Origin : Mainland China Condition : New Operating Temperature : 0-50C wholesale : support dropshipper : support for one channel 18650 Battery : Electronic load resistance tester 21700 Battery capacity tester : electronic load tester

Features: 1.The product supports single channel internal resistance and capacity measurement 2.Supports separate charging, with up to 9 charging and discharging cycles in automatic mode 3.Using DC two wire method to test internal resistance, both Chinese and English can be switched 4.The 18650 battery holder uses a spring type battery holder, which is suitable for all batteries 5.The maximum charging and discharging current is about 1A Attention: During the charging and discharging process, some components may generate local high temperatures. Please ensure that the use environment is open and uncovered, and it is best to increase fan heat dissipation. To ensure the firmness of the battery clamp, the 18650 battery holder uses a compact battery holder suitable for flat head battery measurement!!! Lithium iron phosphate battery charging is not supported Power on/off: ① Automatic power on when powered on ② Press and hold the "ON/OFF/Menu" button to turn off the device when it is turned on. ③ When the power is not turned off, click the "ON/OFF/Menu" button to turn on the computer. Switching between Chinese and English interfaces: ① Shutdown ② Press and hold the "Adjust" button to power on, release the button after the screen lights up, and wait for 10 seconds after turning on to turn off ③ Reboot and complete the switch. Parameters Working power supply: DC5V external power supply or 18650 battery (both need to be provided by oneself) Applicable batteries: Suitable for batteries that meet the requirements of stopping discharge voltage of 2.5-3.5V and charging at 4.2V Power supply interface: Type-C interface, with self-contained power supply line (C-port mobile phone line) System language: English/Chinese switchable Test quantity: 1-way charging and discharging measurement (only for the right battery) Internal resistance measurement: supported, using DC two wire method to test internal resistance Charging function: supported, with 1-channel program control for up to approximately 1A charging; 1-circuit hardware control with a maximum charge of approximately 0.5A Discharge function: Supported, only 1 channel supports a maximum discharge of about 1A, and automatically stops when the condition is met Automatic charging and discharging: Supported, the battery is fully charged at the end of automatic mode (stop voltage set to 2.8V or above) Cyclic charging and discharging: supported, adjustable for 1-9 cycles Status prompt: Supported Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V 3.3V, 3.4V, 3.5V, a total of 11 adjustable gears Discharge current: Two resistors, with a maximum current of about 1A, non adjustable, and does not support independent modification Charging voltage: controlled by a dedicated battery charging chip, with a maximum charge of about 0.5A/1A and a full charge voltage of 4.2V Power off save: only save the set parameters, not the measurement data

Upgrade content:1. The appearance is the same as the previous generation, with hardware upgrades and support for PD charger power supply.2. The interface style has changed from the original black background and colored characters to colored background and white characters.3. Pre language switching: default shipping English interface, adding language switching function in the startup interface, which can directly switch the default language.4. Added conditional activation function.5. Added static phase in automatic mode.6. Added capacity measurement for the first charge in automatic modePackage include: 18650 Battery Capacity Internal Resistance Tester X1 label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No Voltage: 1.5
