Teltonika RUT976 RedCap 5G Industrial Router Wi-Fi 4G LTE Dual SIM

Teltonika RUT976 RedCap 5G Industrial Router Wi-Fi 4G LTE Dual SIMTeltonika RUT976 RedCap 5G Industrial Router Wi-Fi 4G LTE Dual SIMTeltonika RUT976 RedCap 5G Industrial Router Wi-Fi 4G LTE Dual SIMTeltonika RUT976 is an industrial router with 5G RedCap connectivity, 4G LTE Cat 4 fallback and dual SIM support. It is designed for stable network access in industrial installations, mobile locations and other applications requiring flexible wired and wireless communication. The router operates with 5G Sub-6 GHz SA, providing download speeds of up to 223 Mbps and upload speeds of up to 123 Mbps.

Flexible mobile connectivity is supported by two Mini SIM card slots with automatic SIM switching. The device can change between SIM cards according to signal quality, data limits or roaming conditions. Optional eSIM support is also available. The router provides detailed connection information, including operator, network type, signal strength, SINR, RSRP, RSRQ, cell ID and transmitted and received data.

5G Sub-6 GHz SA: up to 223 Mbps download and 123 Mbps upload

4G LTE Cat 4: up to 195 Mbps download and 105 Mbps upload

SIM support: 2 × Mini SIM, automatic SIM switching and optional eSIM

Wi-Fi 4: 802.11b/g/n with Access Point and Station modes

Wi-Fi capacity: up to 100 simultaneous clients

Advanced Wi-Fi: wireless mesh, fast roaming, BSS transition management and radio resource measurement

Wired networking includes one 10/100 Mbps WAN port and three 10/100 Mbps LAN ports. The router supports static and dynamic routing, VLAN separation, port forwarding, DMZ, NAT, NAT64 and a wide range of network protocols. Bridge mode and IP passthrough allow the mobile connection to be passed directly to another device on the LAN.

Network security and remote access are provided through a configurable firewall, traffic rules, access control, port protection and protection against selected network attacks. The RUT976 supports OpenVPN, IPsec, GRE, L2TP, WireGuard, ZeroTier, Tinc, Stunnel and other VPN technologies. Wi-Fi security includes WPA2, WPA3, OWE, AES-CCMP, TKIP, EAP-TLS and 802.11w PMF.

Ethernet: 1 × WAN and 3 × LAN, 10/100 Mbps RJ45

VPN: OpenVPN, IPsec, WireGuard, ZeroTier, GRE, L2TP and more

Firewall: port forwarding, traffic rules, DMZ, NAT and NAT-T

Management: Web GUI, CLI, SSH, Telnet, SNMP and Teltonika Web API beta

Monitoring: link inspection, ping, scheduled reboot and connection statistics

Industrial integration is supported by digital and analog inputs and outputs, a relay output, an open-collector output and a USB 2.0 Type-A port for external storage. The router supports MODBUS TCP, DNP3 and DLMS/COSEM TCP protocols, as well as MQTT broker and publisher functions. GNSS support includes GPS, GLONASS, BeiDou, Galileo and QZSS, with NMEA 0183 and NTRIP client functionality.

Rugged industrial construction enables operation from -40 °C to 75 °C with 10% to 90% humidity without condensation. The device has an IP30 protection rating, a compact 100 × 110 × 50 mm enclosure and a weight of 295 g. It can be mounted on a DIN rail, wall or flat surface when used with the appropriate mounting accessories. Power is supplied through a 9–30 VDC connector, with reverse-polarity and overvoltage protection, as well as passive PoE through LAN1.

Operating system: RutOS based on OpenWrt

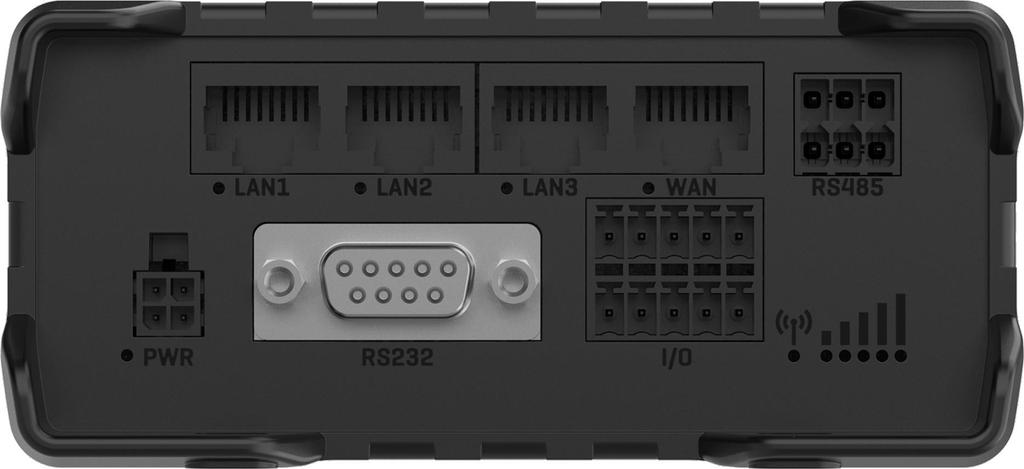

Physical interfaces: 4 × RJ45, digital inputs and outputs, analog input and relay output

Antenna connectors: 2 × SMA LTE, 2 × RP-SMA Wi-Fi and 1 × SMA GNSS

Operating temperature: -40 °C to 75 °C

Power consumption: less than 3 W idle and less than 7 W maximum

Certifications: CE, UKCA, FCC, IC, RCM, CB, RoHS and REACH 379.96TELTONIKA
