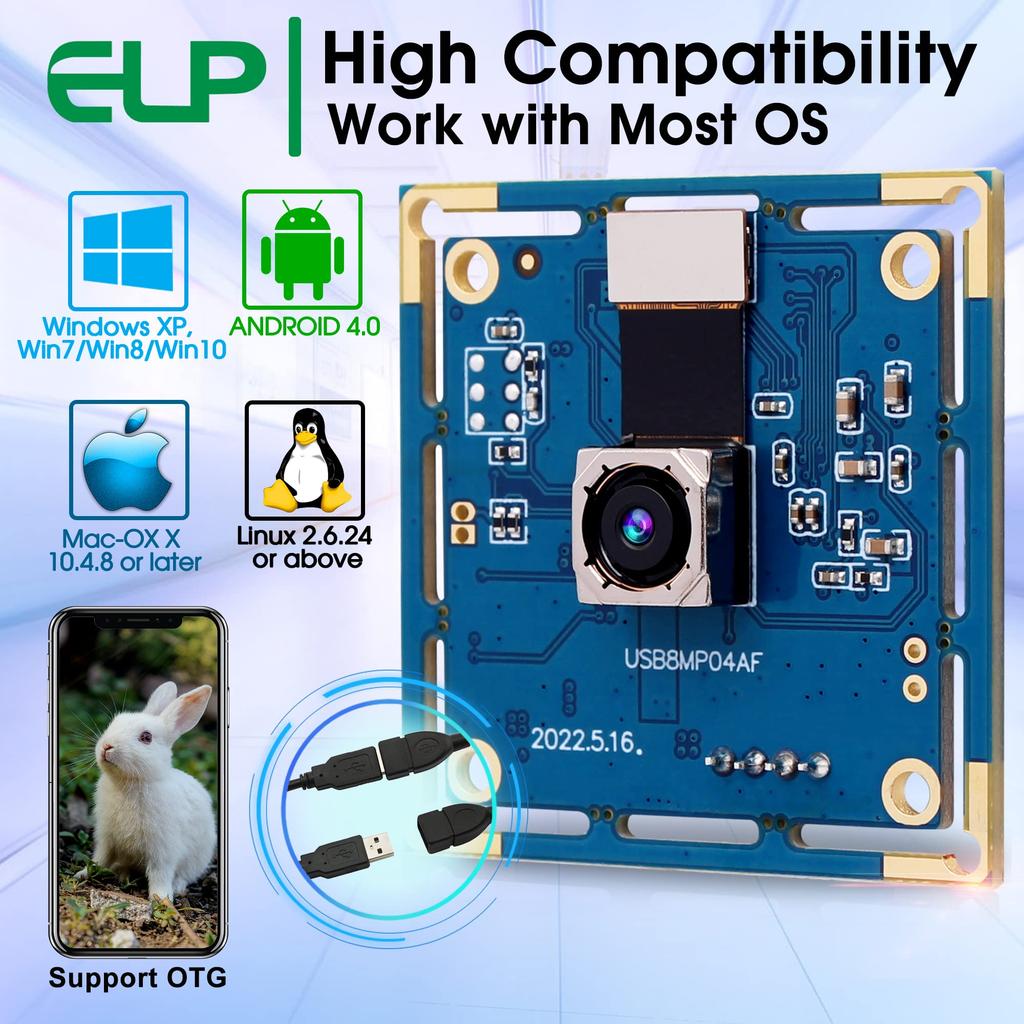

ELP 4K USB Wide 8MP Webcam IMX179 Webcam Video for Industrial Embedded Laptop USB Surveillance PC Camera Camera, Autofocus, Angle, Compact, Module,

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

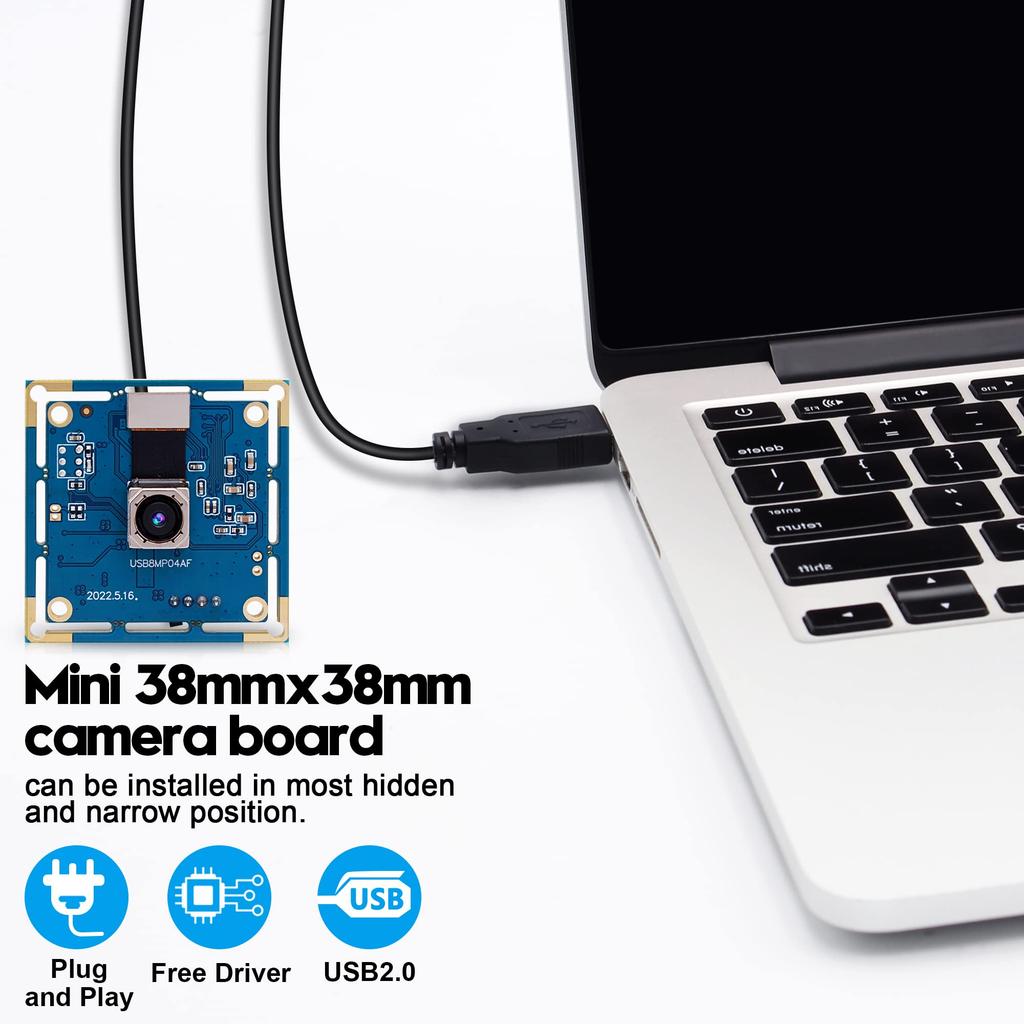

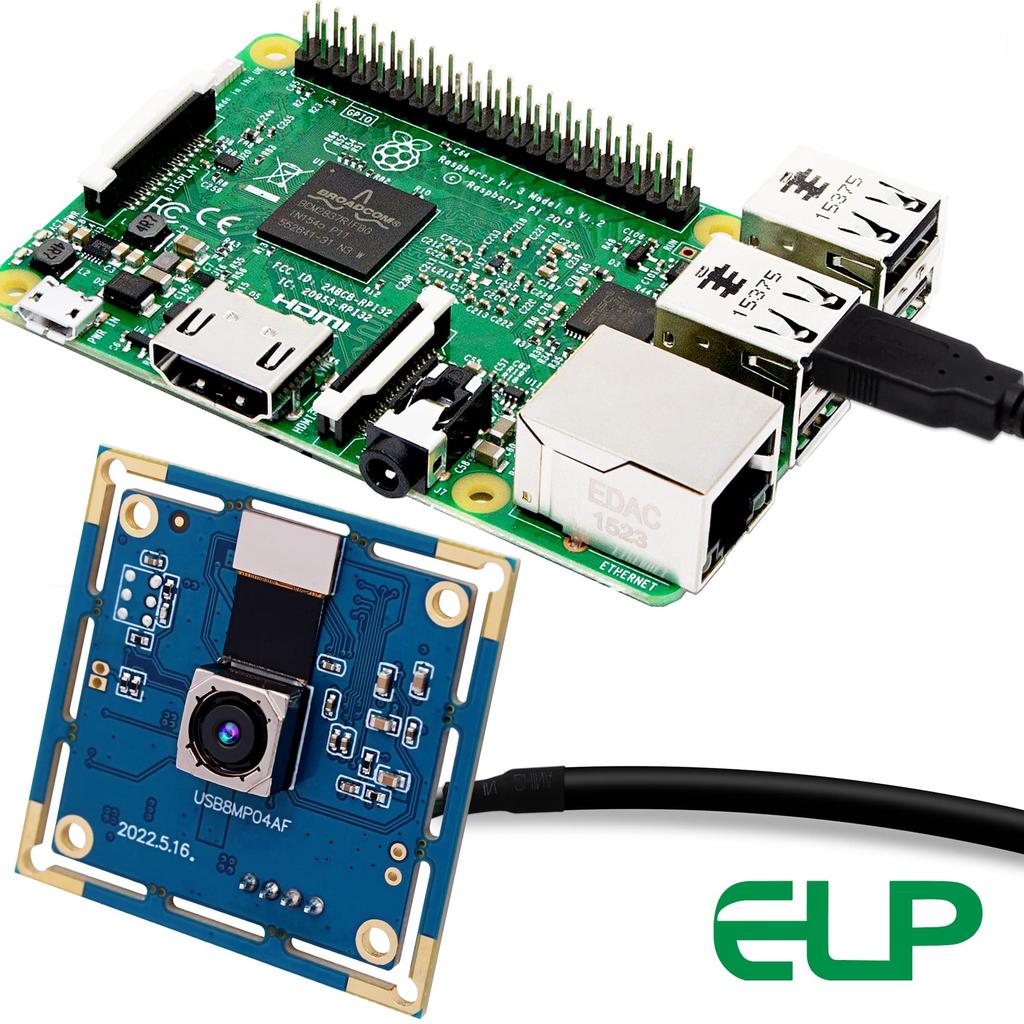

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Ultra HD: Features a built-in 1/3.2-inch IMX179 image sensor for superior image performance, with a maximum still image resolution of 3264x2448. 38x38/32x32mm mini-micro USB camera, includes a 1-meter/3.3-foot USB cable for laptops. Autofocus: Shoot both near and far objects with the same camera, automatically controlled without lens adjustment tools, resulting in sharper and easier images than fixed-focus cameras. Mini USB autofocus camera with distortion-free lens, DFOV is approximately 72 degrees. Frame rates: Supports 3264x2448@15fps, 3200x2440@25fps, 800x600@30fps, and YUV video streaming. High-speed USB 2.0 4K USB camera with adjustable parameters (brightness, contrast, saturation, white balance, gamma, resolution, exposure, etc.). Plug and Play: UVC compliant. Simply connect the camera to your PC, laptop, or Android device using the included USB cable; no additional drivers need to be installed. Compatible with Raspberry Pi, Ubuntu, OpenCV, Amcap, and many other USB webcam software and hardware. Applications: The ELP 8MP autofocus 4K USB camera is highly recommended for home surveillance systems, 3D printer monitoring, object recognition and tracking, barcode and QR code identification and scanning, or other machine vision applications requiring high resolution. Model number: ELP-USB8MP04AF-V72 Sensor: SONY IMX179 Sensor size: 1/3.2 inches Pixel size: 1.4μm × 1.4μm Image area: 6.18mm x 5.85mm Maximum resolution: 3264(H) x 2448(V) 8 megapixels. Compression format: MJPEG / YUY2 (YUYV) Resolution and frame rate: 3264X2448 MJPEG@15fps YUY2@1fps 2592X1944 MJPEG@20fps YUY2@2fps 2048X1536 MJPEG@15fps YUY2@3fps 1600X1200 MJPEG@25fps YUY2@5fps 1920X1080 MJPEG@25fps YUY2@5fps 1280X960 MJPEG@25fps YUY2@5fps 1280X720 MJPEG@25fps YUY2@10fps 1024X768 MJPEG@25fps YUY2@10fps 800X600 MJPEG@25fps YUY2@25fps 640X480 MJPEG@25fps YUY2@25fps 320X240 MJPEG@25fps YUY2@25fps S/N ratio: 34dB Dynamic range: 72.5dB Sensitivity: 0.65V/Lux-sec@550nm Minimum illuminance: 0.5 lux Shutter type: Electronic rolling shutter / Frame exposure Connection port type: USB 2.0 High Speed Free Drive Protocol: USB Video Class (UVC) OTG protocol: USB2.0 OTG AGC/AEC/AWB: Auto Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, backlight contrast, exposure Lens parameters: AF lens Focus: 3.5mm, DFOV: 72 degrees Power supply: USB BUS POWER 4P-2.0mm socket Operating voltage: DC 5V Operating current: 150mA~240mA Operating temperature: -10~70℃ Storage temperature: -20~85℃ Board size/weight: 38 x 38 mm (compatible with 32 x 33 mm) / approx. 30 g Cable: Standard 1m / Optional 2m, 3m, 5m Operating system request: Windows XP/Vista/Win7/Win8/Win9/Win10/Win11, etc. Linux with UVC (Linux-2.6.26 or later), macOS X 10.4.8 or later, Android 4.0 or later with UVC
