ANENG AC11 Socket Tester Electric Leakage Detector LCD Display Ground Wire Zero Line Live Wire Phase Multifunctional Electrical Electroscope RCD NCV

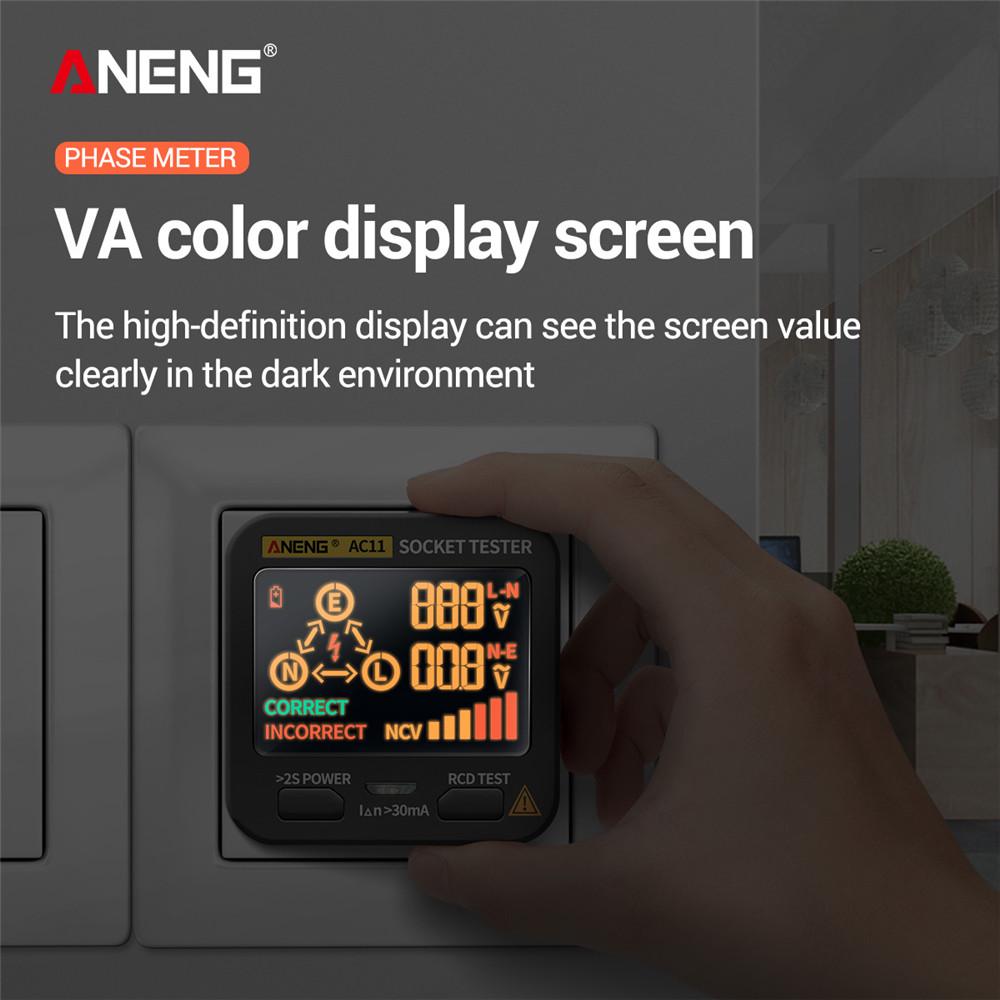

ANENG AC11 Socket Tester Electric Leakage Detector LCD Display Ground Wire Zero Line Live Wire Phase Multifunctional Electrical Electroscope RCD NCV Electric Tester Circuit Polarity Detector EU Plug - Compact& Portable: Advanced socket tester for rapidly detecting whether the wire connection of a socket is correct or not. Compact size& light weight, convenient to use. - VA Color Display Screen: The high-definition display can see the screen value clearly in the dark environment. - 8 Display Patterns: With 8 easy-to-read indicators to indicate the state of the socket, easy to judge: Wiring correct, missing neutral wire, missing earth wire, earth wire is missing, reversed, reversed, lack live wire, live symbol. - Non-contact Induction: When a nearby AC voltage is detected, the lightening symbol/index grid flashes and an alarm beep sounds. - RCD Test Button: When the button is pressed and there is no trip and power failure, there is no leakage protection. One Click to know the working state of the leakage protector, protecting your security against the risk of electric shock. This ANENG AC11 smart socket tester is mainly used to detect polarity of power socker and safety of leakage switch. It can quickly and accurately detect ground wire neutral wire live wire, leakage, trip, socket voltage and the wiring of the socket and then simultaneously display the results on the LCD LED screen.

Specifications:

Material: ABS

Color: Black

Plug: EU, US, AU, SA (Optional)

Power Supply: 2 * AAA battery (NOT included)

Voltage Test Range: 0.1V~250V / 40~1kHz

RCD Current: >30mA

RCD Working Voltage: 220V±20V

Working Voltage: 2.6~3.3V

Working Environment: 0°C~40°C, 20%~75% RH

Storage Environment: -10°C~50°C, 20%~80% RH

Item Size: Approx. 64.5*64.5*58.2mm / 2.54*2.54*2.29in

Item Weight: Approx. 69g / 2.43oz

Package Size: Approx. 125*75*70mm / 4.92*2.95*2.76in

Package Weight: Approx. 135g / 4.76oz

Note:

In the application of leakage switch protection detection function, please turn off all electrical appliances and carry out it with permission to ensure that power failure will not cause any harm.

Packing List:

1 * Socket Tester

1 * Users Manual(English)
