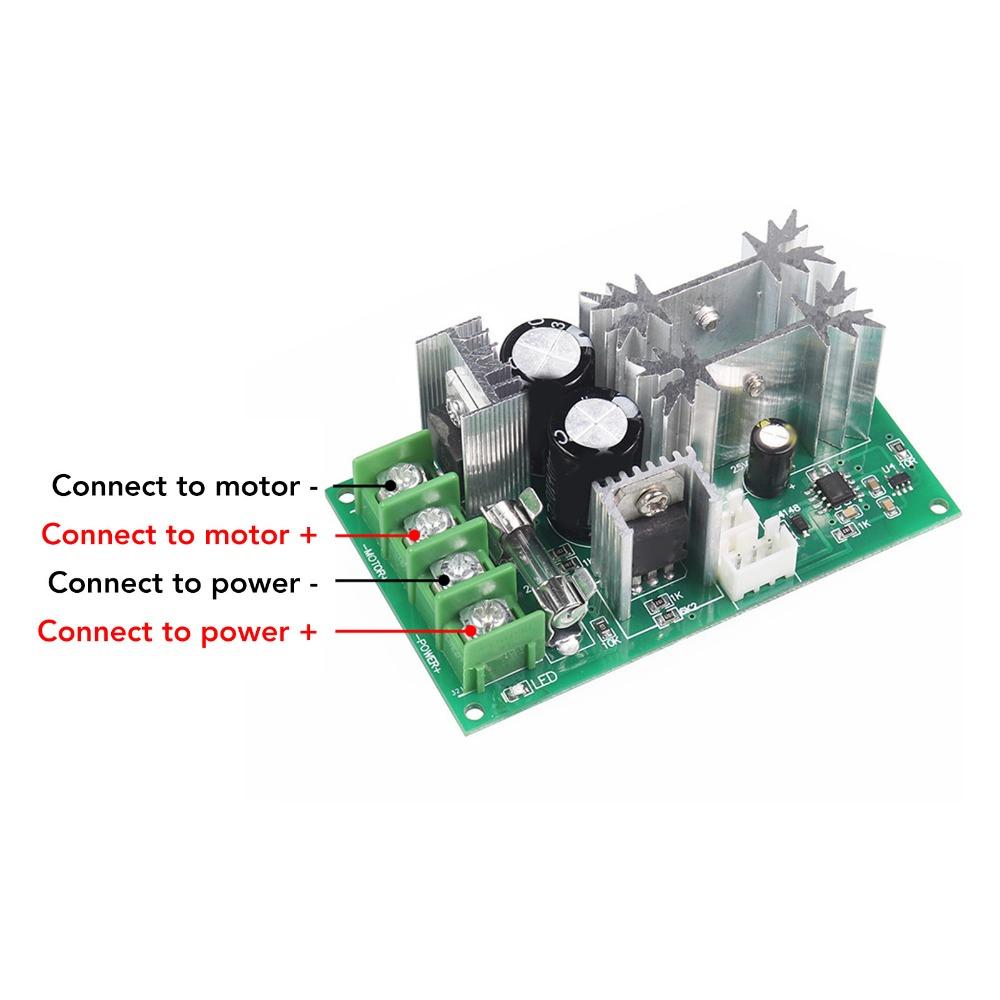

10V‑60V Input Voltage DC Motor Speed Governor Brush Motor Driver Module Industrial Control

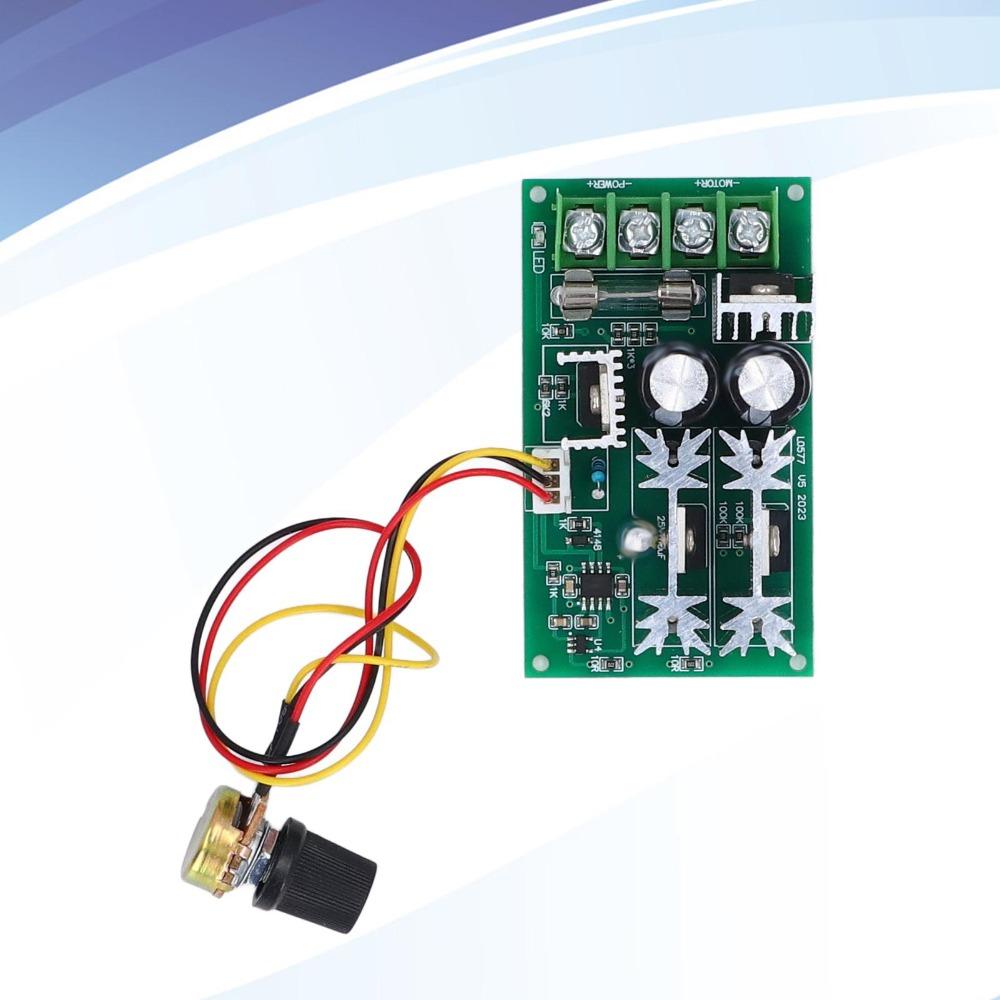

Label:Yes [ROTARY SPEED CONTROL] The motor control board adjusts motor speed through the potentiometer. Adjustment range from 5% to 100%, and the potentiometer knob includes an on and off switch. [VOLTAGE AND CURRENT] Input voltage range from 10 to 60 V, output current range from 0 to 20 A, output capacity up to 1200 W. [MAIN APPLICATIONS] This DC motor driver can be used for DC brushed motors, LED lights, and DC brushed fan speed regulation. [INSTANTANEOUS CURRENT GUARD] Handles high instantaneous current up to 20 A for safe use.

[HIGH EFFICIENCY] Using pulse width modulation for dimming or speed regulation allows the energy from the supply to be fully used, and circuit efficiency is strong.

Item Type: PWM DC Motor Governor Input Voltage: DC10V-60V Output Voltage: Linear under load Speed Regulation Type: Flow regulation Speed Regulation Method: Potentiometer(linear) Control Frequency: 25KHZ Applicable Current: Continuous use within 10A, instant current maximum 20A Adjustment Range: 5%-100 percent Material: PCB Color: Multicolor Size: Approx. 77 x 45 x 28mm(3.03 x 1.77 x 1.10in) Package List: 1 x PWM DC Motor Governor Note: The motor cannot be used in electric vehicles.
